Model NO.	PCB
Material	Fiberglass Epoxy
Application	Consumer Electronics
Flame Retardant Properties	V0
Mechanical Rigid	Rigid
Processing Technology	Electrolytic Foil
Base Material	Copper
Insulation Materials	Organic Resin
Brand	OEM
Product Name	Turnkey PCB Assembly Services
Quality Grade	Ipca610
Surface Finish	Lead/Lead-Free HASL/Immersion Gold
SMT Capacity	3 Million~4 Million Soldering Pad/Day
DIP Capacity	100 Thousand Pins/Day
PCB Material	High Quality Fr4, Rogers, and Aluminum Material
Shipping	by DHL, FedEx, UPS
Certificate	UL, Reach, RoHS and CQC
Solder Resist Color	Green;Red;Yellow;Black;White
Solder Mask Color	Yellow;Black;White;
Delivery Time	Sample Is Available Within 3days
Testing Service	100% Aoi Lct Fct Testing
Design	Original
Transport Package	Transport Package
Specification	50mm50mm~510mm460mm
Trademark	Printed Circuit Board
Origin	China
Production Capacity	3 Million~4 Million Soldering Pad/Day

Packaging & Delivery

Package Size64.00cm * 45.00cm * 45.00cm Package Gross Weight10.000kg

Product Description

Shenzhen Jingxin Electronic Technology Co.,Ltd(JXE )has offered high-quality PCBs and the best PCB assembly service all over the world since 2002. We have been specializing in quick-turn PCB prototyping and turnkey PCB assembly services and are one of China's leading companies in the industry. As electronics engineers' best partners, we remain committed to providing unparalleled service. All of your orders will be reviewed by JXE engineers. Our principle is to use our profession to ensure that you get exactly what you expect.

Overview of the Company OFFICE

SMT Workshop Production line First sample testing Automatic weldingPCB Manufacturing Service

PCB layout, PCB design according to your idea
PCB copy/clone
Digital Circuit Design / Analog Circuit Design/ lRF Design /Embedded Software Design
Firmware and Microcode Programming Windows Application (GUI) Programming/Windows Device Driver (WDM) Programming
Embedded User Interface Design / System Hardware Design...

PCB Assembly Service

Electronic components material purchasing
Bare PCB fabrication
PCB Assembly Service. (SMT, BGA, DIP)
FULL Test: AOI, In-Circuit Test (ICT), Functioal Test (FCT)
Cable, Wire-harness assembly,sheet metal,Electrical cabinet Assembly service
Conformal coating service
Prototyping and mass production...

PCB ASSEMBLY MANUFACTURER

Rigid PCB assembly Rigid - flex PCB assembly Flexible PCB assembly FR-4 PCB Assembly Advanced PCB Assembly Aluminum PCB Assembly Copper PCB AssemblyPCB showcasePCBA Showcase

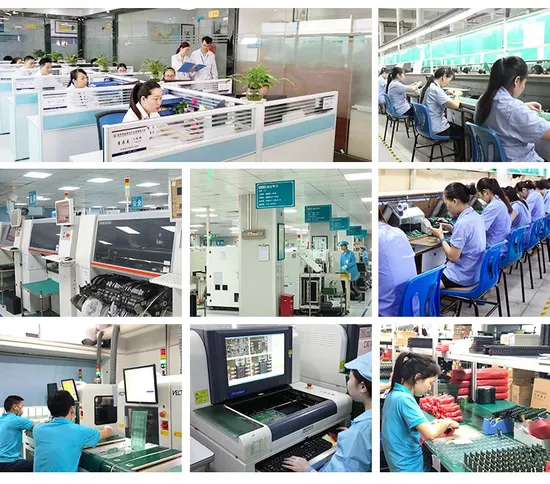

JXE a real PCB assembly manufacturer in Shenzhen, which have dust-free workshop which cover an area of over than 10000m², almost 550 employees, more than 30 production lines include SMT,DIP,automatic welding,aging test. We have over 50 SMT machines from Japan and Korea with the most advanced production equipment pick and place machine, Reflow oven, Wave soldering Machine, X-RAY, AOI testing machine and the most professional technical personnel.

PCB ASSEMBLY CAPABILITIES

Multiple Layer PCB Stack-upPCB Material PCB laminate users hign quality Fr4,Rogers,and Aluminum material for PCB production.
Quality GuaranteedOur factory is fully compliant with standard of ISO 9001:2015 AND IATF 16949 quality systerm management .All the products are certificated with UL,REACH,RoHS and CQC.

Quality and Policy :1.Continually improve our quality, efficiency, service to satisfy thecustomer's requirement. Quality Specifications:Quality System:1. ISO-9001:2018 Quality System Standard 2. Quality Standard: IPC-610-D class 2, 3. Soldering Standard: J-STD-001 class 1,2,3 4. ESD Standard: ESD-MIL-STD-1686 5. Workshop management:7S 6. FAI-first article inspection 7. In process visual inspection 8. AOI inspection 9. Machine calibration and preventative maintenance
10. ERP material and process management ( ERP=enterprise resource planning computer system)

Quality standardsIPC-A-610D-GRoHS managementProduct compliant: RoHS RoHS prohibited substances list : NO. Name The upper limit(ppm=mg/kg) 1 Pb 0.1%(1000ppm) 2 Hg 0.1%(1000ppm) 3 Cd 0.001%(100ppm) 4 Cr VI+ 0.1%(1000ppm) 5 PBB 0.1%(1000ppm) 6 PBDE 0.1%(1000ppm)Testing and PCBA maintenance department

Jingxin provide custom test service according to client's requirements and products. Usually Jingxin PCBA Techoffers a full range of testing service. Including:

*AOI(Automatic Optical Inspection) * Function Testing * In Circuit Testing * Testing Jig * Testing Service * X-Ray for BGA Testing * Printing Solder Paste Test

Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers. Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested. Flash testing and earth bonding tests can also be undertaken where required

On-time Shipping Guaranteed99% on-time shipping by DHL 24 hour online customer service Shorted delivery by DHL to only 3-5 days 24 hours expedited services for PCB and PCBA fabrication,Track your PCB and assembly order status online

Reasonable Price GuaranteedInstant quote with no hidden cost $5 for 5-10pieces.10*10cm PCB prototypes $30 OFF for SMT assembly components cost Exhibition ShowFAQ

Q1. What is needed for quotation?

Quote Requirement:Gerber file of the bare PCB boardBOM (Bill of material) for assembly To short the lead time, please kindly advise us if there is any acceptable components substitution (for PCB assembly). Testing Guide & Test Fixtures if necessary Programming files & Programming tool if necessary Schematic if necessaryEven if you do not have Gerber file , we can also Copy it for you as you need send us the sampleIf you have any question you can feel free to contact me,Thank you.

We have a workforce of approximately 550 people. We are proud of our reputation as a leading specialist in surface-mount, thru-hole and mixed technology PCB assembly and electronic manufacturing services as well as turn-key electronic PCB assembly.Our PCBA capabilities are listed in the table below:

1	Min. Order Quantity	≥1PC
2	Board Type	Rigid PCB, Flexible PCB,Rigid-Flex PCB
3	Assembly Types	Surface mount (SMT), Through-hole (DIP), Mixed technology (SMT & Thru-hole)
4	Board Size	50mm50mm~510mm460mm
5	Quality Grade	IPC-A-610
6	Min Package	01005(0.4mm*0.2mm); Min. BGA Dia. 0.14mm; Min. BGA Pitch 0.2mm
7	Mounting Accuracy	±0.035mm(±0.025mm) Cpk≥1.0 (3σ)
8	Surface Finish	Lead/Lead-free HASL, Immersion gold,OPS etc.

9	SMT Capacity	3 Million~4 Million Soldering Pad/day
10	DIP Capacity	100 Thousand Pins/day
11	Lead time	24 hours expedited service can be offered. 3- 4 days normally for PCBA prototype orders. We will give you accurate lead time when we quote for you.

4-Layer PCB with 2 Routing Layers,a Ground Plane and a Power Plane

6 layer PCB has GTL, GBL,and 4 inner layers. Every signal thattravels from 1 to 6 layers

8 layer PCB has GTL, GBL,and 6 inner layers. Every signalthat travels from 1 to 8 layers

10 layerPCB hasGTL,GBL,and 8 inner layers. Every signalthat travels from 1 to 10 layers

Common packaging:
PCB: Vacuum packaging with carton box PCBA:ESD packaging with carton box 1.Gerber file & Bom list. 2. Clear pics of pcba or pcba sample for us. 3.Test method for PCBA.
Q2. What file formats do you accept for production? 1. Gerber Files (Eagle and electronic print circuit board File are available). 2. BOM list. (Excel(PDF, WORD, TXT) 3. Clear pictures of PCBA or PCBA samples to us. 4. Pick N Place file. 5. Test procedure for PCBA.

Q3. Are my files safe? Your files are held in complete safety and security. We protect the intellectual property for our customers are never shared with any third parties.

Q4. MOQ? There is no MOQ. We are able to handle small as well as large volume production with flexibility.

Q5. Shipping cost? The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the freight.

Q6. How can you ensure the quality of the PCBs? Our PCBs are 100% test including Flying Probe Test, E-test and AOI.

Q7. Can we visit your company? No problem.You are welcome to visit us in Shenzhen.
