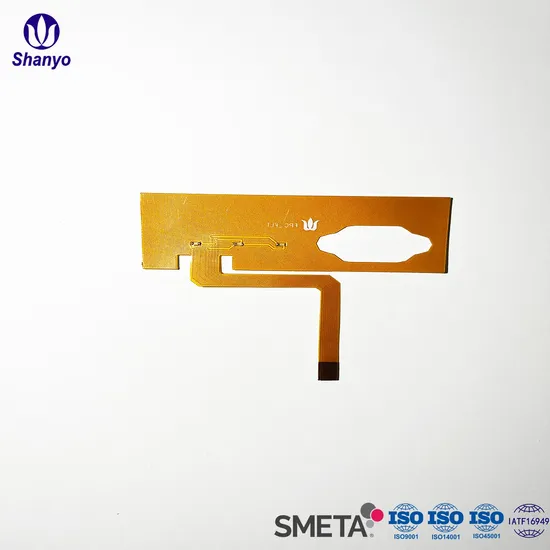

Custom Precision Thin Thickness Environmentally Friendly Flexible Printed Circuit FPC Board

Overview
Product Description
Company Profile
FAQ

Overview

Basic Info.

Model NO.	FPC
Combination Mode	Adhesive Flexible Plate
Application	Digital Products, Computer with LCD Screen, Mobile Phone, Aviation and Aerospace, Industrial Controls
Conductive Adhesive	Conductive Silver Paste
Flame Retardant Properties	V0
Processing Technology	Electrolytic Foil
Insulation Materials	Organic Resin
Brand	Shanyo
Sample	Free
Switch Stroke	Flat Type 0.1-0.5mm
Color	Clear Metal Color
Dimension/Shape	OEM Service
Keypad Button Material	Metal
Transport Package	Standard Export Package or as Reruired.
Specification	Customization
Trademark	Customization
Origin	China
Production Capacity	6000000PCS/Day

Product Description

Custom Precision Thin Thickness Environmentally Friendly Flexible Printed Circuit FPC Board

Product Description

Number of layers	Flexible board: 1-8 layers
	Soft and hard boards: 2 to 10 layers
Materials	PI, PET, PEN, FR-4, transparent PI, thick copper
Final thickness	Flexible board: 0.002 inches - 0.1 inches (0.05-2.5 millimeters)
	Soft and hard boards: 0.0024 inches - 0.16 inches (0.06-4.0 millimeters)
Surface treatment	Lead-free: ENG Gold; OSP, silver plating, tin plating
Maximum/minimum board size	Minimum: 0.2 inches x 0.3 inches \ nMaximum: 20.5 inches x 13 inches
Minimum wire width/minimum gap	Within the	outside
	1/3 ounce: 3/2 millimeter	1/3 ounce: 3/2 millimeter
	1/2 ounce: 3/3 mils	1/2 ounce: 3/2 millimeter
	1 ounce: 4/4mil	1 ounce: 5/5mil
	2 ounces: 5/7 mil	2 ounces: 5/7 mil
The smallest hole ring	1/3 ounce -0.5 ounce: 4 mils	1/3 ounce -0.5 ounce: 4 mils
	1 ounce: 5mil	1 ounce: 5mil
	2 ounces: 7 millimeters	2 ounces: 7 millimeters
Copper thickness	1/3 ounce - 2 ounces
Maximum/minimum insulation thickness	2mil/0.5mil 50um/12.7um
Minimum hole size and tolerance	4mil
	Tolerance: PTH±3mil NPTH±2mil
Minimum slot	24 millimeters x 35 millimeters (0.6 millimeters x 0.9 millimeters)

Custom Precision Thin Thickness Environmentally Friendly Flexible Printed Circuit FPC Board

Company Profile

FAQQ1: What are the main business activities of Shanyo Precision Electronics Technology Co., Ltd.?
A1: We are a professional manufacturer specializing in the R&D and production of precision electronic components. Our main products include metal domes, precision stamped parts, FPC flexible circuits, light guide plates, PCB circuits, etc., which are widely used in consumer electronics, automotive electronics, medical devices, smart home systems, and other fields.
Q2: Do your products comply with international standards?
A2: Yes, we have obtained ISO9001:2015,ISO14001:2015,ISO45001:2015,IATF16949:2015,Sedex2p certifications, and strictly adhere to environmental standards such as RoHS and REACH to ensure our products meet global market requirements.
Q3: Do you support customized production?
A3: Absolutely! We provide ODM/OEM services and can customize materials, dimensions, surface treatments, etc., according to customer requirements. We also offer DFM (Design for Manufacturability) optimization suggestions.
Q4: Who are your notable partners?
A4: We have established long-term cooperative relationships with internationally renowned companies such as Tesla, Amazon, and Goertek, and we continue to expand our global market presence.
Q5: How can I request a quotation or sample support?
A5: You can contact us through the following channels: Our engineering team will respond to your inquiry with in 24 hours.
